EyeCGas Fly OGI is the worlds most sensitive OGI camera designed for drone & airborne platforms. Detecting and visualizing Methane, CO2 and over 400 VOC’s.

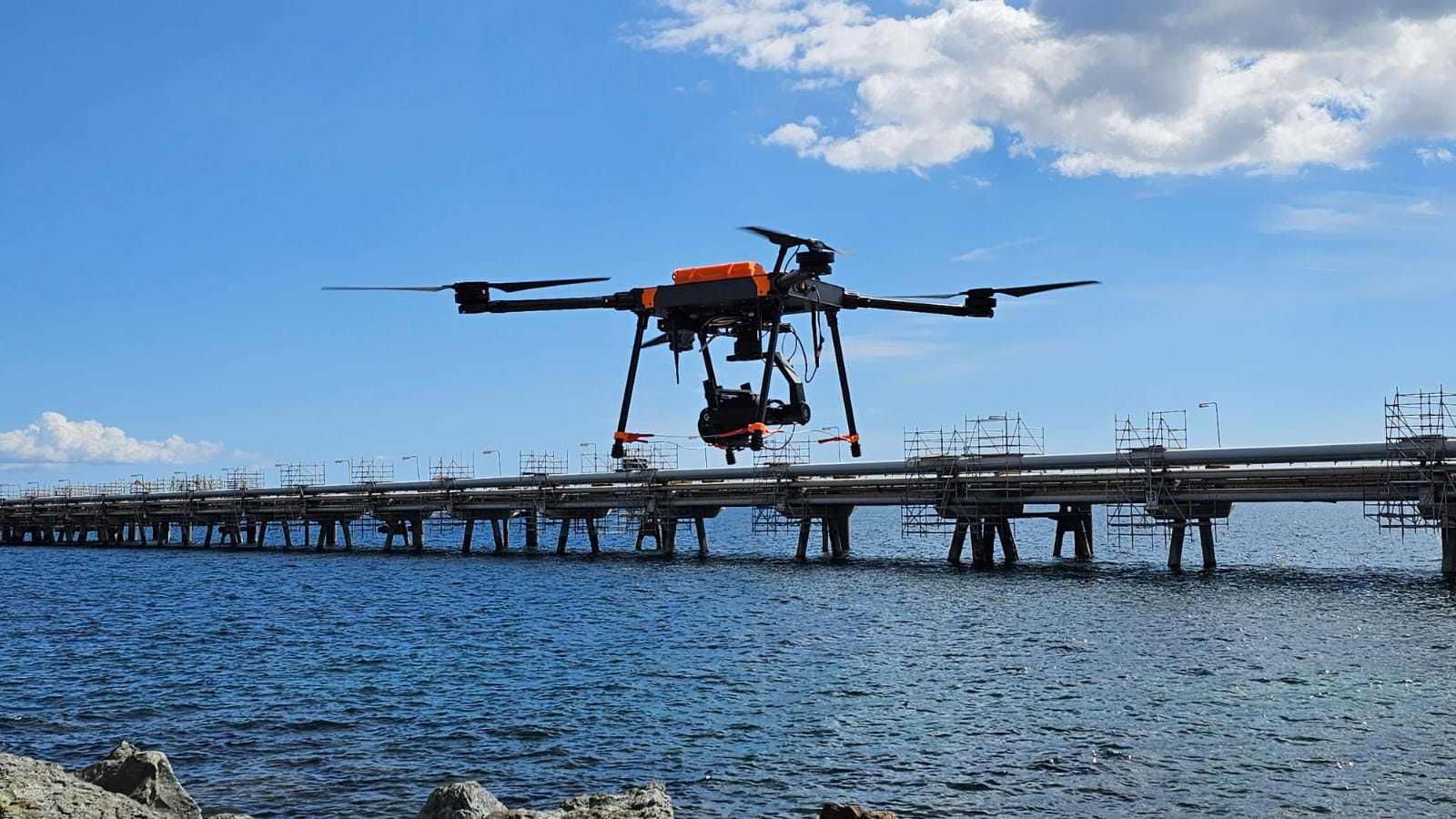

EyeCGas Fly was specially designedto easily integrate on drones & airborne platforms, offering a low weight and volume design along with easy integration interfaces. EyeCGas Fly enables detection using unique built-in image processing algorithms, images and video recording, as well as live streaming.

Gas Leak Detection – Quick detection of methane, CO, CO2 and Volatile Organic Compounds (VOC’s) leaks.
High Sensitivity – Most sensitive sensor design enables detecting smaller leaks / Perform detection from longer distances.
Gas Quantification (Optional) – Built-in Wi-Fi, GPS, hotspot and Bluetooth capabilities.
Thermographic Imaging – Temperature measurements capabilities and color pallets for better versatility.
EPA 0000a Compliant – Complies with the EPA’s Quad Oa (OOOOa) regulations.
Seamless integration – Especially designed to allow quick and easy integration on drones & gimbaled platforms.
Compact design – Low weight, compact size enables integration with smaller platforms

ANSI/ISA-12.12.01-Nonincendive Electrical Equipment for Use in Class I and II, Division 2, and Class III Hazardous (Classified) Locations,
CSA C22.2 No. 213-M1987, First Edition: Non-Incendive Electrical Equipment for Use in Class I, Division 2 Hazardous Locations.
IECEx EMT 19.0006X as Intrinsic Safety “ic”, protection “n”
EMT19ATEX0009X
Ex II 3 GD
Ex ic nA nC IIC T6 Gc Tamb = -20 °C to +50 °C
Ex ic IIIC T85 °C Dc Tamb = -20 °C to +50 °C

EyeCGas 2.0 – Long Range is backed by a 4-year warranty. With thousands of customers internationally from producers, service providers and governmental regulators. EyeCGas 2.0 – Long Range allows for reliable, safe, quick, and cost effective detection for all industry requirements. Avoid unnecessary shut down, ensure employee safety, and stay on top of regulatory compliance. For more information or a quote, contact us today.

Technial Specifications

IMAGING PERFORMANCE - THERMAL IMAGER

IR RESOLUTION: 320 x 240 pixels
IFOV: 1 mRad [30um pitch]
FULL FRAME RATE: 15 Hz
SPECTRAL BANDE: 3.1 – 3.5 µm
THERMAL SENSITIVITY: <10mK@ 25˚C
OPTICS: f/1.1; 18° (30 mm) Lens; Manual focus; ꝏ Fixed
DIGITAL ZOOM: x2, x4, x8 and x16 (only for visible camera)
START-UP TIME: < 12 min @ 25°C
OPERATING TEMPERATURE RANGE: -20 to +40°C

Lens

18.2°, f = 30 mm, F1.1

Focus Modes

ꝏ Fixed

PHYSICAL CHARACTERISTICS

WEIGHT: 1.4750kg (3.09 lbs)
COLOR: Grey and Black
SIZE IN (LXHXW): 194mm x 103.5mm x 94.5 mm
INTERFACE: Tripod mounting UNC 1/4″, rotation safe

THERMOGRAPHY

MEASUREMENT: Spot temperature measurement
RANGE: -20°C to +350 °C
ACCURACY: At Least ± 1 °C (0 – 100 °C), ± 2% (> 100 °C), ± 2°C (-20 – 0 °C)
COLOR PALETTES: 6 color palettes (Rainbow, Iron, ISO red, ISO green, Grey Scale and Vivid)

QUANTIFICATION

Remote EyeCSite / Offline (TBR)

Environmental Conditions

IP55 (TO BE TESTED)

GAS LEAK DETECTION PERFORMANCE

OPERATION FEATURES: Auto and Enhanced Modes
WITH SPECTRAL FILTER OF 3.2µM TO 3.4µM FOR VOCs GASES DETECTION: 400+ COMPOUNDS SUCH AS: Methane, Acetic acid, Benzene, Butadiene, Butene, Butane, Dimethyl-Benzene, Ethane, Ethylene, Ethyl benzene, Ethylene oxide, Hexane, Heptane, Isobutylene, Isopropyl alcohol, Isoprene, Methanol, MEK Methyl Ethyl Ketone, Octane, Pentene, Propane, Propanal

DIGITAL VIDEO AND AUDIO RECORDING

VIDEO AND AUDIO RECORDING: Digital video recorder build-in generates a .ts format video on all modes.
SNAPSHOT CAPABILITIES: Snapshot command generates a .jpg file on any of the available modes
STORAGE: Up to 20 hours and more of video storage over a 55GB solid state memory

COMMUNICATION INTERFACES

USB: Data transfer, video streaming and video images file transfer
12p MULTI PORT: Ethernet [DHCP client]v; Power in [12V]; Maintenance port

Electrical

POWER: 12 VDC: 13W
