EYECGAS^® 2.0 Long Range

Long Range Optical Gas Detector for Methane, Hydrocarbons, more than 400 VOCs and Co₂

Product Features

Gas Leak Detection

Gas Quantification

EPA 0000'a/b/c Compliant

LDAR-Ready Capabilities

Thermographic Imaging

Connectivity

Intrinsically Safe

Multi Spectral Filters

Application Videos

EyeCGas 2.0 – Long Range Optical Gas Detector for Methane, Hydrocarbons, more than 400 VOCs and CO₂

Opgal’s EyeCGas 2.0 – Long Range is a ruggedized, intrinsically safe and the world’s most sensitive OGI camera with a specific design to support long range inspection and gas emission detection. Built to withstand harsh industry conditions while ensuring safety, this OGI camera quickly detects Methane, CO₂ and over 400 Volatile Organic Compounds (VOC’s). Making it your ideal leak detection solution for long-range emission detection applications. EyeCGas 2.0 – Long Range enables detection and quantification (built in or via EyeCSIte QOGI dedicated software) from a remote distance. It is the only OGI camera with a patent multi Spectral interchangeable filters for improved detection in various scenarios. Especially in humid and long range conditions. Stream your inspection in real time, or share your results using the dedicated EyeCGas App. Receive free software upgrades, which are based on customer feedback, and rest assure that your investment is guaranteed with our exclusive 4-year warranty.

Free Firmware Upgrades – Receive camera upgardes and improvements free of charge.
Multi Spectral OGI – The only OGI camera with replaceable filters enabling improved Methane/VOC & CO₂ detection with the same camera.
Thermographic Imaging – Temperature measurements capabilities and color pallets for better versatility.
Rugged & Sealed – Especially designed for detecting gas leaks in the harsh conditions of the oil and gas industry.
Intrinsically Safe – IECEX intrinsically safe Zone II, ANSI, CSA Class I & Class II div.2.
Long-range telephoto lens – Providing 7.5 deg Field of View for a clear image in a long distance.
Gas Quantification – Built-in quantification or remotely operated quantification via EyeCSite software and other 3rd party devices.
LDAR-Ready Capabilities – Integrates with various softwares and analyzers.
Gas Leak Detection – Quick detection of methane, CO₂ and over 400 VOC’s.
Meets Regulatory Compliance – Complies with the EPA’s OOOO’a/b/c regulations.
Connectivity – Built-in Wi-Fi, GPS, hotspot and Bluetooth capabilities.

ANSI/ISA-12.12.01-Nonincendive Electrical Equipment for Use in Class I and II, Division 2, and Class III Hazardous (Classified) Locations,
CSA C22.2 No. 213-M1987, First Edition: Non-Incendive Electrical Equipment for Use in Class I, Division 2 Hazardous Locations.
IECEx EMT 19.0006X as Intrinsic Safety “ic”, protection “n”
EMT19ATEX0009X
Ex II 3 GD
Ex ic nA nC IIC T6 Gc Tamb = -20 °C to +50 °C
Ex ic IIIC T85 °C Dc Tamb = -20 °C to +50 °C

EyeCGas 2.0 – Long Range is backed by a 4-year warranty. With thousands of customers internationally from producers, service providers and governmental regulators. EyeCGas 2.0 – Long Range allows for reliable, safe, quick, and cost effective detection for all industry requirements. Avoid unnecessary shut down, ensure employee safety, and stay on top of regulatory compliance. For more information or a quote, contact us today.

Technical Specifications

IMAGING PERFORMANCE - THERMAL IMAGER

IR Resolution: 320 x 240 pixels
Focus: Manual Focus
Detector Pitch: 30 μm
Thermal Sensitivity/ NETD: <10 mK at 30°C (86°F)
Gas Sensitivity: 9.0 ppm m, 0.07 g/h (ΔT =10 °C , 1 m/s wind speed, distance 2m (Methane))
Appendix K sensitivity 0.15 g/h (ΔT 5°C 1 m/s wind speed distance 1m (Methane))

Hazardous Location Compliance: CSA C22.2 No. 213-M1987, Non-
Incentive Electrical Equipment for Use in Class I, Division 2, ANSI/ ISA-12.12.01 – Class I and II, Division 2, and Class III, ATEX.
Intrinsically safe for Zone 2 ratings as: Ex II 3 GD; Ex ic nA nC IIC T6 Gc; Ex ic tc IIIC T85°C DC

GAS LEAK DETECTION CAPABILITIES: With spctral filters for Methane, VOC's and Carbon dioxide
DETECTION: 400+ compounds such as: Methane, Acetic acid, Benzene, Butadiene, Butene, Butane, Dimethyl-Benzene, Ethane, Ethylene, Ethyl benzene, Ethylene oxide, Hexane, Heptane, Isobutylene, Isopropyl alcohol, Isoprene, Methanol, MEK Methyl Ethyl Ketone, Octane, Pentene, Propane, Propanal.

Detector and Optical Data

Detector Type: Focal plane array (FPA), cooled MCT
Spectral Range: 3.1 μm to 4.4 μm
Replaceable filters: Std. 3.2-3.5 μm; Long range 3.3-3.6 μm; CO₂ 4.1-4.4 μm
Sensor Cooling: Stirling Microcooler
Digital Image Enhancement: High sensitivity mode (HSM), noise reduction filter
Supplied lenses: 7.5° (75 mm); 18° (30 mm)
F-Number: 1.1

Image Presentation

Display: 3.5" (10’equivlent using glare shield), 640 × 480 pixel, LCD
Image Presentation Modes: IR image, visual image, Normal, Enhanced & Thermography
Color Palettes: 6 color palettes (Rainbow, Iron, ISO red, ISO green, Grey Scale and Vivid)
Zoom: x2, x4, x8 and x16 (only for visible camera)

Measurement & Analysis

Measurement Temperature Range: -20°C to 350°C (-4°F to 662°F)
Accuracy: At Least ± 1 °C (0 – 100 °C), ± 2% (> 100 °C), ± 2°C (-20 – 0 °C)
Gas emission Quantification: Built-in real-time and offline Image processing VOC gas quantification for desktop or handheld application (offline/online operation)

Accessories & Apps

Head up display: Seamless integration including voice commands with Realware® head up display

Mobile APP: Android 10 /IOS 14 and up

Communication interface & Data Storage

GPS: Included, can be added to any still or video recording
Storage Media: Up to 20 hours and more of video storage over a 64GB solid state memory
Image File Formats: JPG Format (on available modes)
Communication Interfaces: USB: Data transfer, video streaming and video images file transfer
Wi-Fi: 2.4 GHz for video streaming and file transfer
Bluetooth: Bluetooth 4.2 with other devices: RMLD, TVA2020
,LDAR software etc… GPS: Built in or external

Video Out: Digital video recorder build-in generates a .ts format video on all modes.

Video Recording and Streaming

IR or Visual Video: Digital video recorder build-in generates a .ts format video on all
Radiometric IR Video Streaming: Over Wifi

Environmental & Certifications

Operating Temperature Range: -20°C to 50°C (-4°F to 122°F)
Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
Encapsulation: IP65 (Intrinsically safe)
Drop: ASTM-D 4169-06 Schedule A
Vibration: ASTM-D 4169-08 Schedule F Test method D999
HALT: Max temp: 55°C, Min temp: -20°C
Safety: EN60950-1:2006

Additional Information

Battery Type: Rechargeable Li-ion battery; 7.4 V, charger included
Battery Operating Time: >4.5 hours continuous operation
Battery Charging Time: 3 hours to 95% capacity, charging status indicated by LEDs
Camera Size: 9″ x 4.3″ x 5.1″ (230 x 110 x 130) mm
Camera Weight: 3.0 kg (6.6 lb)
Mounting Interfaces: UNC ¼"-20
Warranty: 4 years (Detector & cooler – 2 years; Batteries 1 year)

Box Contents

Packaging: Infrared camera with lens, Batteries (2), Battery Charger, USB Cable, Neck strap, Glare Shield, Carrying Case, Cleaning Kit.

Downloads

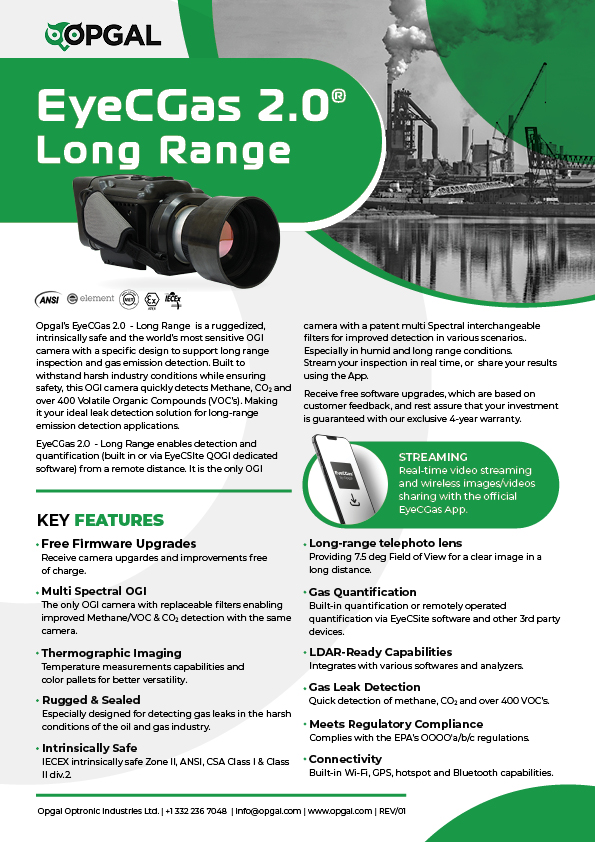

EYECGAS^® 2.0 Long Range

Methane, Vocs & Co₂

DOWNLOAD

Certificate - EMC

DOWNLOAD

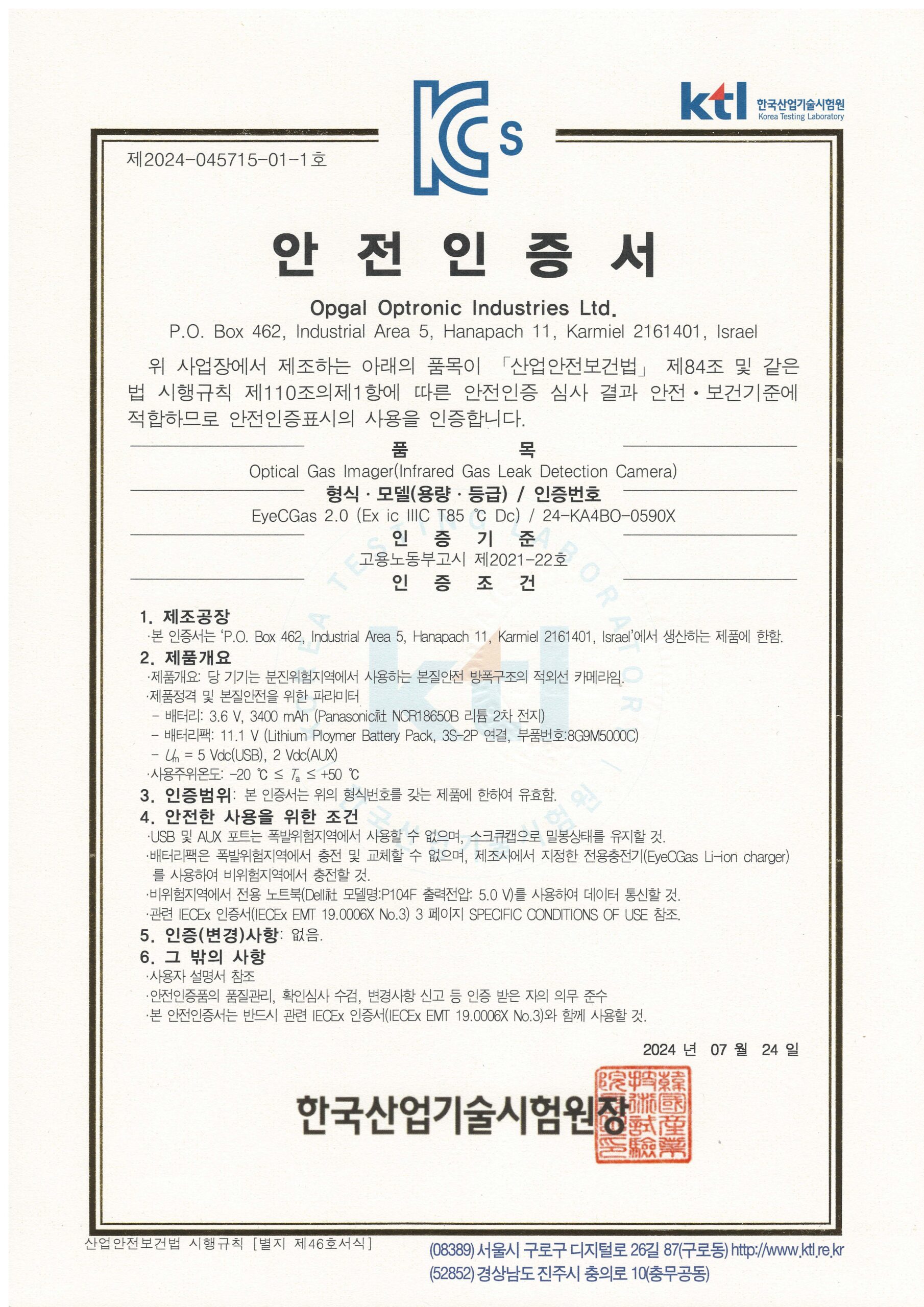

KCs Certificate_EyeCGas 2.0_Ex ic IIIC T85 °C Dc
